Oracle Database on ACFS: a perfect marriage?

Update: I will give this presentation at UKOUG Tech15, Wed 9 December at 14:30.

This presentation has had a very poor score in selections for conferences (no OOW, no DOAG) but people liked it very much at Paris Oracle Meetup.  The Database on ACFS is mainstream now, thanks to the new ODA releases. Having some knowledge about why and how you should run (not) Databases on ACFS is definitely worth a read.

Slides

Demo 1 recording

Demo 2 recording

Demo script (DB ACFS clone from Standby Database)



Comments are, as always, very appreciated 🙂

Ludo

It’s confirmed. Standard Edition and Standard Edition One are dead.

The first voices came on July 3rd, 2015.

After many years of existence, Standard Edition and Standard Edition One will no longer be part of the Oracle Database Edition portfolio.

The short history

Standard Edition has been for longtime the “stepbrother” of Enterprise Edition, with less features, no options, but cheaper than EE. I can’t remember when SE has been released. It was before 2000s, I guess.

In 2003, Oracle released 10gR1. Many new features as been released for EE only, but:

– RAC as been included as part of Standard Edition

– Standard Edition One has been released, with an even lower price and “almost” the same features of Standard Edition.

For a few years, customers had the possibility to get huge savings (but many compromises) by choosing the cheaper editions.

SE ONE: just two sockets, but with today’s 18-core processors, the possibility to run Oracle on 36 cores (or more?) for less than 12k of licenses.

SE: up to four sockets and the possibility to run on either 72 core servers or RAC composed by a total of 72 cores (max 4 nodes) for less than the price of a 4-core Enterprise Edition deployement.

In 2014, for the first time, Oracle released a new Database version (12.1.0.2) where  Standard Edition and SE One were not immediately available.

For months, customers asked: “When will the Oracle 12.1.0.2 SE be available?”

Now the big announcement: SE and SE One will no longer exist. With 12.1.0.2, there’s a new Edition: Oracle Database Standard Edition 2.

You can find more information here:



Some highlights

– SE One will no longer exist

– SE is replaced by SE Two that has a limitation of 2 sockets

– SE Two still has RAC feature, with a maximum of two single-socket servers.

– Customers with SE on 4 socket nodes (or clusters) will need to migrate to 2 socket nodes (or clusters)

– Customers with SE One should definitely be prepared to spend some money to upgrade to SE Two, which comes at the same price of the old Standard Edition. ($17,500 per socket).

– the smallest amount of NUP licenses when licensing per named users has been increased to 10 (it was 5 with SE and SE One).

– Each SE2 Database can run max 16 user threads (in RAC, max 8 per instance). This is limited by the database Resource Manager. It does not prevent customers from using all the cores, in case they want to deploy many databases per server.



So, finally, less scalability for the same pricetag.

Other bloggers have already written about the behaviour of SE2. The best blog post is IMO from Franck Pachot. http://blog.dbi-services.com/oracle-standard-edition-two/

Cheers

Ludo

SQL Plan Directives: they’re always good… except when they’re bad!

The new Oracle 12c optimizer adaptive features are just great and work well out of the box in most cases.

Recently, however,  I’ve experienced my very first problem with SQL Plan Directives migrating a database to 12c, so I would like to share it.

Disclaimer 1: this is a specific problem that I found on ONE system. My solution may not fit with your environment, don’t use it if you are not sure about what you’re doing!

Disclaimer 2: despite I had this problem with a single SPD, I like adaptive features and I encourage to use them!!

Problem: a query takes a sub-second in 11gR2, in 12c it takes 12 seconds or more.

V_TAB_PROP is a very simple view. It just selects a central table “TAB” and then takes different properties by joining  a property table “TAB_PROP”.

To do that, it does 11 joins on the same property table.

On the property table, TAB_PROP_ID and PROP_ID are unique (they compose the pk), so nested loops and index unique scans are the best way to get this data.
The table is 1500Mb big and the index 1000Mb.

This was the plan in 11g:

In 12c, the plan switches to adaptive, and half of the joins are converted to hash joins / full table scans:

However, the inflection point is never reached. The execution keeps the default plan that has half of the joins HJ and the other half NL.

The problem in this case is the SQL Directive. Why?

There are to many distinct values for TAB_ID and the data is very skewed.

The histogram on that column is OK and it always leads to the correct plan (with the adaptive features disabled).
But there are still some “minor” misestimates, and the optimizer sometimes decides to create a SQL Plan directive:

The Directive instructs the optimizer to do a dynamic sampling, but with a such big and skewed table this is not ok, so the Dynamic sampling result is worse than using the histogram. I can check it by simplifying the query to just one join:

What’s the fix?

I’ve tried to drop the directive first, but it reappears as soon as there are new misestimates.
The best solution in my case has been to disable the directive, an operation that can be done easily with the DBMS_SPD package:

I did this on a QAS environment.
Because the production system is not migrated to 12c yet, it’s wise to import these disabled directives in production before the optimizer creates and enables them.

Off course, the directives can’t be created for objects that do not exist, the import  has to be done after the objects migrate to the 12c version.

Because the SQL Plan Directives are tied to specific objects and not specific queries, they can fix many statements at once, but in case like this one, they can compromise several statements!

Monitoring the creation of new directives is an important task as it may indicate misestimates/lack of statistics on one side or execution plan changes on the other one.

Tales from the Demo Grounds part 2: cloning a PDB with ASM and Data Guard (no ADG)

In my #OOW14 presentation about MAA and Multitenant, more precisely at slide #59, “PDB Creation from other PDB without ADG*”, I list a few commands that you can use to achieve a “correct” Pluggable Database clone in case you’re not using Active Data Guard.

What’s the problem with cloning a PDB in a MAA environment without ADG? If you’ve attended my session you should know the answer…

If you read the book “Data Guard Concepts and Administration 12c Release 1 (12.1)“, paragraph 3.5 Creating a PDB in a Primary Database, you’ll see that:

If you plan to create a PDB as a clone from a different PDB, then copy the data files that belong to the source PDB over to the standby database. (This step is not necessary in an Active Data Guard environment because the data files are copied automatically when the PDB is created on the standby database.)

But because there are good possibilities (99%?) that in a MAA environment you’re using ASM, this step is not so simple: you cannot copy the datafiles exactly where you want, it’s OMF, and the recovery process expects the files to be where the controlfile says they should be.

So, if you clone the PDB, the recovery process on the standby doesn’t find the datafiles at the correct location, thus the recovery process will stop and will not start until you fix manually. That’s why Oracle has implemented the new syntax “STANDBYS=NONE” that disables the recovery on the standby for a specific PDB: it lets you disable the recovery temporarily while the recovery process continues to apply logs on the remaining PDBs. (Note, however, that this feature is not intended as a generic solution for having PDBs not replicated. The recommended solution in this case is having two distinct CDBs, one protected by DG, the other not).

With ADG, when you clone the PDB on the primary, on the standby the ADG takes care of the following steps, no matter if on ASM or FS:

  1. recover up to the point where the file# is registered in the controlfile
  2. copy the datafiles from the source DB ON THE STANDBY DATABASE (so no copy over the network)
  3. rename the datafile in the controlfile
  4. continue with the recovery

If you don’t have ADG, and you’re on ASM, Oracle documentation says nothing with enough detail to let you solve the problem. So in August I’ve worked out the “easy” solution that I’ve also included in my slides (#59 and #60):

  1. SQL> create pluggable database DEST from SRC standbys=none;
  2. RMAN> backup as copy pluggable database DEST format ‘/tmp/dest%f.dbf’;
  3. $ scp  /tmp/dest*.dbf remote:/tmp
  4. RMAN> catalog start with ‘/tmp/dest’
  5. RMAN> set newnamefor pluggable database DEST to new;
  6. RMAN> restore pluggable database DEST;
  7. RMAN> switch pluggable database DEST to copy;
  8. DGMGRL> edit database ‘STBY’ set state=’APPLY-OFF’;
  9. SQL> Alter pluggable database DEST enable recovery;
  10. DGMGRL> edit database ‘STBY’ set state=’APPLY-ON’;

Once at #OOW14, after endless conversations at the Demo Grounds, I’ve discovered that Oracle has worked out the very same solution requiring network transfer and that it has been documented in a new note.

Making Use of the STANDBYS=NONE Feature with Oracle Multitenant (Doc ID 1916648.1)

This note is very informative and I recommend to read it carefully!

What changes (better) in comparison with my first solution, is that Oracle suggests to use the new feature “restore from service”:

I’ve questioned the developers at the Demo Grounds about the necessity to use network transfer (I had the chance to speak directly with the developer who has written this piece of code!! :-)) and they said that they had worked out only this solution. So, if you have a huge PDB to clone, the network transfer from the primary to standby may impact severely your Data  Guard environment and/or your whole infrastructure, for the time of the transfer.

Of course, I have a complex, undocumented solution, I hope I will find the time to document it, so stay tuned if you’re curious! 🙂

Tales from Demo Grounds part 1: Clone PDBs while open READ-WRITE

DISCLAIMER: I’ve got this information by chatting with Oracle developers at the Demo Grounds. The functionality is not documented yet and Oracle may change it at its sole discretion. Please refer to the documentation if/when it will be updated 😉

In one of my previous posts named “A PDB is cloned while in read-write, Data Guard loose its marbles (12.1.0.2, ORA-19729)” I’ve blogged about a weird behaviour:

The documentation states that you can create a pluggable database from another one only if the source PDB is open read-only.

Indeed, If I try to clone it when the source PDB is MOUNTED, I get error ORA-65036:

The weird behavior is that if you do it when the source is in read-write mode, it works from release 12.1.0.2 (onward?)

I’ve questioned the developers at the DEMO Grounds and they have confirmed that:

  • With the 12.1.0.2, they have initially planned to disclose this functionality (clone PDBS in READ-WRITE).
  • That they had problems in making it work with an Active Data Guard environment (a-ah! so my post was not completely wrong)
  • Finally they have released it as undocumented feature
  • In the next release “they will fix it, maybe” and document it
  • The process of cloning the PDB anyway freeze the transactions on the source

I hope that this update helps clarifying both the behavior and my previous post about this problem! 🙂

Cheers

Ludo

In-memory Columnar Store hands-on

As I’ve written in my previous post, the inmemory_size parameter is static, so you need to restart your instance to activate it or change its size. Let’s try to set it at 600M.



First interesting thing: it has been rounded to 608M so it works in chunks of 16M. (to be verified)

Which views can you select for further information?

V$IM_SEGMENTS gives a few information about the segments that have a columnar version, including the segment size, the actual memory allocated, the population status and other compression indicators.

The other views help understand the various memory chunks and the status for each column in the segment.

Let’s create a table with a few records:

The table is very simple, it’s a cartesian of two “all_tables” views.

Let’s also create an index on it:

The table uses 621M and the index 192M.

How long does it take to do a full table scan almost from disk?

15 seconds! Ok, I’m this virtual machine is on an external drive 5400  RPM… 🙁

Once the table is fully cached in the buffer cache, the query performance progressively improves to ~1 sec.

There is no inmemory segment yet:

You have to specify it at table level:

The actual creation of the columnar store takes a while, especially if you don’t specify to create it with high priority. You may have to query the table before seeing the columnar store and its population will also take some time and increase the overall load of the database (on my VBox VM, the performance overhead of columnar store population is NOT negligible).

Once the in-memory store created, the optimizer is ready to use it:

The previous query now takes half the time on the first attempt!

The columnar store for the whole table uses 23M out of 621M, so the compression ratio is very good compared to the non-compressed index previously created!



This is a very short example. The result here (2x improvement) is influenced by several factors. It is safe to think that with “normal” production conditions the gain will be much higher in almost all the cases.
I just wanted to demonstrate that in-memory columnar store is space efficient and really provides higher speed out of the box.

Now that you know  about it, can you live without? 😛

Oracle Database 12c in-memory option, a quick overview

Oracle Database 12.1.0.2 is finally out, and as we all knew in advance, it contains the new in-memory option.

I think that, despite its cost ($23k per processor), this is another great improvement! 🙂

Consistent savings!

This new feature is not to be confused with Times Ten. In-memory is a feature that enable a new memory area inside the SGA that is used to contain a columnar organized copy of segments entirely in memory. Columnar stores organize the data as columns instead of rows and they are ideal for queries that involve a few columns on many rows, e.g. for analytic reports, but they work great also for all extemporary queries that cannot make use of existing indexes.

Columnar stores don’t replace traditional indexes for data integrity or fast single-row look-ups,  but they can replace many additional indexes created for the solely purpose of reporting. Hence, if from one side it seems a waste of memory, on the other side using in-memory can lead to consistent memory savings due to all the indexes that have no more reason to exist.

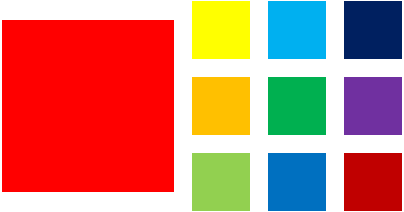

Let’s take an example of a table (in RED) with nine indexes (other colors).

inmem_table_indexes

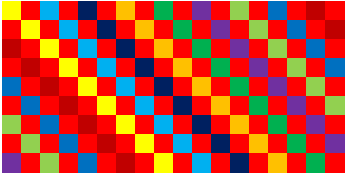

If you try to imagine all the blocks in the buffer cache, you may think about something like this:

inmem_sga1

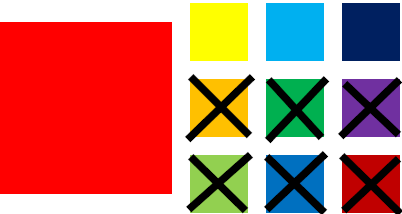

Now, with the in-memory columnar store, you can get the rid of many indexes because they’ve been created just for reporting and they are now superseded by the performance of the new feature:

inmem_no_indexes

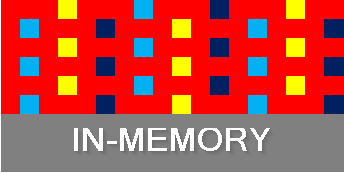

In this case, you’re not only saving blocks on disk, but also in the buffer cache, making room for the in-memory area. With columnar store, the compression factor may allow to easily fit your entire table in the same space that was previously required for a few, query-specific indexes. So you’ll have the buffer cache with traditional row-organized blocks (red, yellow, light and dark blue) and the separate in-memory area with a columnar copy of the segment (gray).

inmem_sga2

The in-memory store doesn’t make use of undo segments and redo buffer, so you’re also saving undo block buffers and physical I/O!



The added value

In my opinion this option will have much more attention from the customers than Multitenant for a very simple reason.

How many customers (in percentage)  would pay to achieve better consolidation of hundreds of databases? A few.

How many  would pay or are already paying for having better performance for critical applications? Almost all the customers I know!



Internal mechanisms

In-memory is enabled on a per-segment basis: you can specify a table or a partition to be stored in-memory.

Each column is organized in separate chunks of memory called In Memory Compression Units (IMCU). The number of IMCUs required for each column may vary.

Each IMCU contains the data of the column and a journal used to guarantee read consistency with the blocks in the buffer cache. The data is not modified on the fly in the IMCU, but the row it refers to is marked as stale in a journal that is stored inside the IMCU itself. When the stale data grows above a certain threshold the space efficiency of the columnar store decreases and the in-memory coordinator process ([imco]) may force a re-population of the store.
Re-population may also occur after manual intervention or at the instance startup: because it is memory-only, the data actually need to be populated in the in-memory store from disk.

Whether the data is populated immediately after the startup or not, it actually depends on the priority specified for the specific segment. The higher the priority, the sooner the segment will be populated in-memory. The priority attribute also drives which segments would survive in-memory in case of “in-memory pressure”. Sadly, the parameter inmemory_size that specifies the size of the in-memory area is static and an instance restart is required in order to change it, that’s why you need to plan carefully the size prior to its activation. There is a compression advisor for in-memory that can help out on this.

Conclusion

In this post you’ve seen a small introduction about in-memory. I hope I can publish very soon another post with a few practical examples.

Where are Extended Data Types stored? (12c)

Oracle has introduced Extended Data Types in 12c. If you still don’t know what they are and how enable them, refer to the awesome oracle-base blog or the official documentation.

Here, I’ll show where they are stored, and when.

Tables created with extended varchar2 (length >4000)

If the table is created with a varchar2 length above 4000, a LOBSEGMENT and a LOBINDEX segments are also created automatically. But actually, the rows inserted may be short enough to be stored inline.



As you can see from the previous output, the LOB segments are almost empty after 1000 rows inserted, whereas the table has 24 blocks. Not enough to be a proof. Let’s try to update the rows with a column size of 1000:



A-ah! The row size is increasing but the blocks are actually allocated in the table segment, this prove that the rows are stored inline!

Where’s the break point? When the rows will be migrated to the out-of-line storage?



Actually, it’s somewhere between 3960 and 3970 bytes, but it may depend on other factors (I havn’t tested it deeply).

Lesson learned: when you design your table with extended types, you should plan how many rows you expect with a size below 4000, because they can make your row access slower and chained rows higher than expected.



Tables created with standard varchar2 and altered afterward

Let’s try almost the same excercise, but this time starting with a table created with a small length (lower than 4000) and altered afterward to make use of the extended size.

So far, so good. Let’s try to extend the column:

The LOB segments have not been created. Meaning that the rows are still stored inline. Let’s try then to update all the rows to a size above 4000:

The blocks have grown in the table segment, the rows are still inline!!

This lead to a huge amount of chained rows!! In this example, 2 blocks per row, but it can be as high as 5 blocks for a single column varchar2(32767) with db_block_size=8192.

So we need to rebuild the table, right?

WRONG! Even after a rebuild the extended varchars are stored INLINE if they have been created as standard varchars. Actually you need to recreate the table and migrate with dbms_redefinition.

Migrating to extended datatypes instead of converting your application to use secure files  can be a disaster for the physical layout of your tables, thus for the performance of your application. Be careful!



Update:

Many thanks to Sayan Malakshinov (@xtner) and Franck Pachot (@FranckPachot) for the information 🙂

Oracle Multitenant and custom DBCA templates

Today I’ve encountered an annoying issue while adapting a few scripts for automatic database creation. I track it here so hopefully it may save a few hours of troubleshooting to someone…

I’ve used the DBCA to prepare a new template:



Then continued by customizing other options, including init parameters and datafile/logfile paths. Finally, I’ve saved it as a new template instead of creating the database.

I’ve checked the resulting .dbc and seen that there was, as expected, the parameter “enable_pluggable_database”=”true”.

Then I’ve moved the template file to my $HOME directory and tested the silent database creation with the option “-createAsContainerDatabase true”:

The database configuration has completed successfully, without errors. I’ve accessed my new container, and I’ve been surprised by seing:

In fact, there were no pdb$seed datafiles:

After little investigation, I’ve found these lines in the dbca trace.log:



Then I’ve struggled with dbca and templates a few times before finding that, actually, the magic “enable pluggable database” is done by dbca only if the template file name is not customized.

Running the same exact command with the very same template file but renamed to $ORACLE_HOME/assistants/dbca/templates/General_Purpose.dbc actually works (notice the diff at the first line):





I’ve also tried to cheat and use a symlink to my previous custom template, and surprisingly, it still works:

In the dbca trace log the message saying that the DB will be NON-CDB disappears:

So the problem is really caused by the different filename/location of the template.

IMHO it’s a kind of bug, the decision between a CDB and NON-CDB should not be taken by DBCA.  Moreover, it’s not based on the content of the template, which would be logic. But today I’m late and lazy, I will not open a SR for this.

:-/

RAC Attack 12c at Collaborate 14 and advanced labs

I’ve just published an advanced lab on SlideShare that RAC Attack attendees may do at Collaborate this year, instead of just doing the basic 2-node RAC installation on their laptop.

We’ll offer also an advanced lab about Flex Clusters and Flex ASM (written by Maaz Anjum). Moreover, I’m working on an additional lab that allows to implement a multi-node RAC by using Virtual Box linked clones and GI Home clones like I’ve shown in my previous post.

RAC Attack at #C14LV will be like fun again. We’ll have a few t-shirts for the attendants, designed by me and Chet “Oraclenerd” Justice, kindly sponsored by OTN.

The workshop will end up with beers and snaks (again, thank you OTN for sponsoring this :-)).

2014_03_27_23_46_49_OraclenerdNinjasFINAL



If you’re planning to attend Collaborate, join us and start your conference week in a good mood 🙂
