Get information about Cursor Sharing for a SQL_ID

Yesterday I’ve got a weird problem with Adaptive Cursor Sharing. I’m not sure yet about the issue, but it seems to be related to cursor sharing histograms. Hopefully one day I will blog about what I’ve learnt from this experience.

To better monitor the problem on that specific query, I’ve prepared this script (tested on 12.1.0.2):

The result is something similar (in my case it has 26 child cursors):

It’s a quick way to get the relevant information in a single result.

Off course, if you need deeper details, you should consider something more powerful like SQLd360 from Mauro Pagano.

Credits: I’ve got the unpivot idea (and copied that part of the code) from this post by Timur Akhmadeev.

Ludo

Querying the dba_hist_sys_time_model to get historical data

This quick post is mainly for myself… I will certainly use it for reference in the future.

Debugging problems due to adaptive dynamic sampling and in general adaptive features sometimes needs to get historical data about, e.g., parse time.

In order to get this information you may need to query the view DBA_HIST_SYS_TIME_MODEL (take care, it needs Diagnostic Pack license!)

You can use this query as an example.



In this specific example, it shows the “parse time elapsed”, the “DB time” and the percentage parse/dbtime, along with the value of the parameter “optimizer_adaptive_features“. You can use it to check if changing the parameters related to adaptive dynamic sampling improves or not the parse time.

The output will be something like this:

HTH

Ludo

Grid Infrastructure 12c: Recovering the GRID Disk Group and recreating the GIMR

Losing the Disk Group that contains OCR and voting files has always been a challenge. It requires you to take regular backups of OCR, spfile and diskgroup metadata.

Since Oracle 12cR1, there are a few additional components you must take care of:

– The ASM password file (if you have Flex ASM it can be quite critical)

– The Grid Infrastructure Management Repository

Why ASM password file is important? Well, you can read this good blog post form my colleague Robert Bialek: http://blog.trivadis.com/b/robertbialek/archive/2014/10/26/are-you-using-oracle-12c-flex-asm-if-yes-do-you-have-asm-password-file-backup.aspx

So the problem here, is not whether you should back them up or not, but how you can restore them quickly.

Assumptions: you back up regularly:

ASM parameter  file:

Oracle Cluster Registry:

ASM Diskgroup Metadata:

ASM password file:

What about the GIMR?

According to the MOS Note: FAQ: 12c Grid Infrastructure Management Repository (GIMR) (Doc ID 1568402.1), there is no such need for the moment.

Weird, huh? The -MGMTDB itself contains for the moment just the Cluster Health Monitor repository, but expect to see its important increasing with the next versions of Oracle Grid Infrastructure.

If you REALLY want to back it up (even if not fundamental, it is not a bad idea, after all), you can do it.

The -MGMTDB is in noarchivelog by default. You need to either put it in archivelog mode (and set a recovery area, etc etc) or back it up while it is mounted.

Because the Cluster Health Monitor (ora.crf)  depends on it, you have to stop it beforehand:

Then you can operate with -MGMTDB:

Now, imagine that you loose the GRID diskgroup (nowadays, with the ASM Filter Driver, it’s more complex to corrupt a device by mistake, but let’s assume that you do it):

The cluster will not start anymore, you need to disable the crs, reboot and start it in exclusive mode:



Then you can recreate the GRID disk group and restore everything inside it:

Finally, the last missing component: the GIMR.

You can recreate it or restore it (if you backed it up at some point in time).

Let’s see how to recreate it:

Conclusion

Recovering from a lost Disk Group / Cluster is not rocket science. Just practice it every now and then. If you do not have a test RAC, you can build your lab on your laptop using the RAC Attack instructions. If you want to test all the scenarios, the RAC SIG webcast: Oracle 11g Clusterware failure scenarios with practical demonstrations by Kamran Agayev is the best starting point, IMHO. Just keep in mind that Flex ASM and the GIMR add more complexity.

HTH

Ludovico

Another successful RAC Attack in Geneva!

ninja-suisseLast week I have hosted the second Swiss RAC Attack workshop at Trivadis offices in Geneva. It has been a great success, with 21 total participants: 5 Ninjas, 4 alumni and 14 people actively installing or playing with RAC 12c on their laptops.

Last year I was suprised by a participant coming fron Nanterre. This year two people came directly from Moscow, just for the workshop!

We’ve got good pizza and special beer: Chimay , Vedett, Duvel, Andechs…

Last but not least, our friend Marc Fielding was visiting Switzerland last week, so he took the opportunity to join us and make the workshop even more interesting! 😀
DSC07173 DSC07164 DSC07183 DSC07148 DSC07147 DSC07144 DSC07142 DSC07154 DSC07153 DSC07152 DSC07151

Looking forward to organize it again in one year! Thank you guys 🙂

Ludovico

How to avoid ORA-02153 when creating database links on 11.2.0.4 (the unsupported way)

Disclaimer (wow, most of my recent posts start with a disclaimer, I guess it’s bad): this post explains an UNSUPPORTED workaround for an error enforced by recent Oracle security checks. You should never use it in production! Forewarned is forearmed.

Before Oracle Database 11.2.0.4, it was possible to create a database link using the following syntax:

It was possible to get the password hash by either selecting dbms_metadata.get_ddl for the database link or by querying directly the link$ table.

Starting with Oracle 11.2.0.4, Oracle is enforcing a check that prevents to use such syntax. Every newly created database link must have the password explicitly set.

This is clearly stated in the MOS note:

ORA-02153: Invalid VALUES Password String When Creating a Database Link Using BY VALUES With Obfuscated Password After Upgrade To 11.2.0.4 (Doc ID 1905221.1)

This is seen as a security enhancement. In my opinion, it forces also to specify clear text passwords somewhere in the scripts that create the db links. (You do not create the db links by hand in sql*plus every time you need one.  Do you?)

The only exception is when using the expdp/impdp. If you expdp a schema, the dumpfile contains the password hash and the statement needed to recreate the database link (… identified by values ‘:1’), but Oracle only allows impdp to use such statement.

So, simple workaround, just create the database links on a dev/staging environment, export them using expdp and then provide your dba the dumpfile so he/she can import it and create the dblinks. Right? Not always.

There is one case where you really need of the old syntax.

  • You don’t know the password

AND

  • You MUST change the database link name.

As you may know, there are no ways to change a database link name (even through impdp, there is no remap_dblink or anything like that).

E.g., you need to keep the db link and intend to use it for a check BUT you want to prevent the application from using it with the old name.

Because I believe that no problems exist that cannot be solved by my Trivadis’ colleagues, I’ve checked internally. A colleague came out with a dead simple (and unsupported) solution:

Insert/update sys.link$, flush the shared_pool.

Remember, use it at your own risk (or don’t use it at all) 😉

HTH

Ludovico

ORA-01882: timezone region not found while connecting to an EM12c target

After a recent upgrade to Enterprise Manager 12c 12.1.0.5, we noticed that the few Oracle Databases in release 10g were no more connectable:

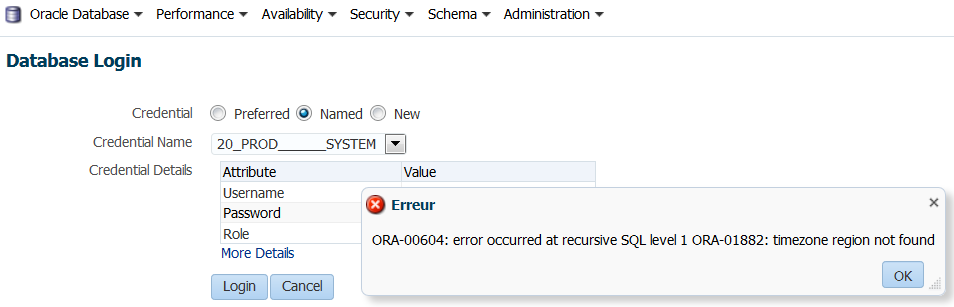

ORA-01882On MOS there are a few notes about the error: ORA-00604: error occurred at recursive SQL level 1 ORA-01882: timezone region not found, the most relevant being Doc ID 1513536.1 and Doc ID 1934470.1.

The problem is due to the time zone table on the target database that doesn’t contain the timezone requested by the client. But who’s the client? In our case, all the target agents were correctly set to Europe/Zurich, but the timezone table of the target database contained it:

So what was causing the problem?

The upgrade process of the OMSes from 12.1.0.3 to 12.1.0.5, without the presence of a specific TZ environment variable, set the OMS timezone to Europe/Vaduz. I figured it out after searching deep and large,  inside the WLS product properties:

Indeed, that timezone was not present in the timezone table version 4:

After setting explicitly the TZ to Europe/Zurich on the OMS servers and restarting the OMSes, everything was fine again.

HTH

Ludo

My feedback after upgrading EM12c 12.1.0.3 to 12.1.0.5

Today I’ve upgraded EM12c for a customer from the second-last version (12.1.0.3) to the last one (12.1.0.5) and the EM Repository from 11.2.0.3 to 12.1.0.2.

The upgrade path was not very easy: EM 12.1.0.3 is not compatible with a repository 12.1.0.2 and EM 12.1.0.5 requires a mandatory patch for the repository if 11.2.0.3 (or an upgrade to 11.2.0.4).

So I’ve done:

  • upgrade of the repository from 11.2.0.3 (in Data Guard configuration) to 11.2.0.4
  • upgrade of the EM from 12.1.0.3 to 12.1.0.5
  • upgrade of the repository from 11.2.0.4 to 12.1.0.2 (in Data Guard configuration), from Solaris to Linux



In my case, I was particularly concerned about my customer’s EM topology:

  • two OMS in load balancing
  • console secured with a custom SSL certificate
  • a good amount of targets (more than 800 total targets, more than 500 targets with status)
  • a lot of jobs and custom reports
  • a big, shared central software library
  • many other small customizations: auth, groups, metrics, templates…

I will not bother with the actual execution steps, every installation may differ, I strongly recommend to read the upgrade documentation (I know, it’s HUGE 🙁 ).

Just to resume, the upgrade guide is here: https://docs.oracle.com/cd/E24628_01/upgrade.121/e22625/toc.htm

in my case I had to read carefully the chapters 3, 4, 5, 6 and appendixes G and K.

By following every step carefully, I had no problems at all and at the end everything was working correctly: all the targets up, the load balancing working in SSL as expected, the jobs restarted and ran successfully…

It has been incredible to see how many operations the OUI has done without raising a single error!!

Ok, it’s not just a Click Next Next Next Next installation, there are a lot of steps to do manually before and afterwards, but still… very good impression.

It took a little more than one hour to upgrade the first OMS (this also upgrades the EM repository) and a little less than 20 minutes to upgrade the second one.

Let a couple of hours for checking everything before, staging the binaries, taking backups/snapshots, creating restore points… and one hours more for upgrading the central agents and cleansing the old installations.

About upgrading/moving the repository, check this good post by Maaz AnjumMIGRATE ENTERPRISE MANAGER 12.1.0.4.0 TO A PDB FROM A NON-CDB, even if you don’t plan to do it, it’s worth a read.

HTH

Ludo

It’s confirmed. Standard Edition and Standard Edition One are dead.

The first voices came on July 3rd, 2015.

After many years of existence, Standard Edition and Standard Edition One will no longer be part of the Oracle Database Edition portfolio.

The short history

Standard Edition has been for longtime the “stepbrother” of Enterprise Edition, with less features, no options, but cheaper than EE. I can’t remember when SE has been released. It was before 2000s, I guess.

In 2003, Oracle released 10gR1. Many new features as been released for EE only, but:

– RAC as been included as part of Standard Edition

– Standard Edition One has been released, with an even lower price and “almost” the same features of Standard Edition.

For a few years, customers had the possibility to get huge savings (but many compromises) by choosing the cheaper editions.

SE ONE: just two sockets, but with today’s 18-core processors, the possibility to run Oracle on 36 cores (or more?) for less than 12k of licenses.

SE: up to four sockets and the possibility to run on either 72 core servers or RAC composed by a total of 72 cores (max 4 nodes) for less than the price of a 4-core Enterprise Edition deployement.

In 2014, for the first time, Oracle released a new Database version (12.1.0.2) where  Standard Edition and SE One were not immediately available.

For months, customers asked: “When will the Oracle 12.1.0.2 SE be available?”

Now the big announcement: SE and SE One will no longer exist. With 12.1.0.2, there’s a new Edition: Oracle Database Standard Edition 2.

You can find more information here:



Some highlights

– SE One will no longer exist

– SE is replaced by SE Two that has a limitation of 2 sockets

– SE Two still has RAC feature, with a maximum of two single-socket servers.

– Customers with SE on 4 socket nodes (or clusters) will need to migrate to 2 socket nodes (or clusters)

– Customers with SE One should definitely be prepared to spend some money to upgrade to SE Two, which comes at the same price of the old Standard Edition. ($17,500 per socket).

– the smallest amount of NUP licenses when licensing per named users has been increased to 10 (it was 5 with SE and SE One).

– Each SE2 Database can run max 16 user threads (in RAC, max 8 per instance). This is limited by the database Resource Manager. It does not prevent customers from using all the cores, in case they want to deploy many databases per server.



So, finally, less scalability for the same pricetag.

Other bloggers have already written about the behaviour of SE2. The best blog post is IMO from Franck Pachot. http://blog.dbi-services.com/oracle-standard-edition-two/

Cheers

Ludo

SQL Plan Directives: they’re always good… except when they’re bad!

The new Oracle 12c optimizer adaptive features are just great and work well out of the box in most cases.

Recently, however,  I’ve experienced my very first problem with SQL Plan Directives migrating a database to 12c, so I would like to share it.

Disclaimer 1: this is a specific problem that I found on ONE system. My solution may not fit with your environment, don’t use it if you are not sure about what you’re doing!

Disclaimer 2: despite I had this problem with a single SPD, I like adaptive features and I encourage to use them!!

Problem: a query takes a sub-second in 11gR2, in 12c it takes 12 seconds or more.

V_TAB_PROP is a very simple view. It just selects a central table “TAB” and then takes different properties by joining  a property table “TAB_PROP”.

To do that, it does 11 joins on the same property table.

On the property table, TAB_PROP_ID and PROP_ID are unique (they compose the pk), so nested loops and index unique scans are the best way to get this data.
The table is 1500Mb big and the index 1000Mb.

This was the plan in 11g:

In 12c, the plan switches to adaptive, and half of the joins are converted to hash joins / full table scans:

However, the inflection point is never reached. The execution keeps the default plan that has half of the joins HJ and the other half NL.

The problem in this case is the SQL Directive. Why?

There are to many distinct values for TAB_ID and the data is very skewed.

The histogram on that column is OK and it always leads to the correct plan (with the adaptive features disabled).
But there are still some “minor” misestimates, and the optimizer sometimes decides to create a SQL Plan directive:

The Directive instructs the optimizer to do a dynamic sampling, but with a such big and skewed table this is not ok, so the Dynamic sampling result is worse than using the histogram. I can check it by simplifying the query to just one join:

What’s the fix?

I’ve tried to drop the directive first, but it reappears as soon as there are new misestimates.
The best solution in my case has been to disable the directive, an operation that can be done easily with the DBMS_SPD package:

I did this on a QAS environment.
Because the production system is not migrated to 12c yet, it’s wise to import these disabled directives in production before the optimizer creates and enables them.

Off course, the directives can’t be created for objects that do not exist, the import  has to be done after the objects migrate to the 12c version.

Because the SQL Plan Directives are tied to specific objects and not specific queries, they can fix many statements at once, but in case like this one, they can compromise several statements!

Monitoring the creation of new directives is an important task as it may indicate misestimates/lack of statistics on one side or execution plan changes on the other one.

It’s time to Collaborate again!!

Collaborate15_Horizontal_LogoIn a little more than a couple of weeks, the great Collaborate conference will start again.

My agenda will be quite packed again, as speaker, panelist and workshop organizer:

Date/Time Event
08/04/2015
3:15 pm - 4:15 pm
Oracle RAC, Data Guard, and Pluggable Databases: When MAA Meets Oracle Multitenant
IOUG Collaborate 15, Las Vegas NV
08/04/2015
4:30 pm - 5:30 pm
Panel: Nothing to BLOG About - Think Again
IOUG Collaborate 15, Las Vegas NV
12/04/2015
9:00 am - 4:00 pm
RAC Attack! 12c
IOUG Collaborate 15, Las Vegas NV
15/04/2015
5:30 pm - 6:00 pm
IOUG RAC SIG Meeting
IOUG Collaborate 15, Las Vegas NV



RAC Attack! 12c

This technical workshop and networking event (never forget it’s a project created several years ago thanks to an intuition of Jeremy Schneider), confirms to be one of the best, long-living projects in the Oracle Community. It certainly boosted my Community involvement up to becoming an Oracle ACE. This year I’m the coordinator of the organization of the workshop, it’s a double satisfaction and it will certainly be a lot of fun again. Did I said that it’s already full booked? I’ve already blogged about it (and about what the lucky participants will get) here.



Oracle RAC, Data Guard, and Pluggable Databases: When MAA Meets Oracle Multitenant

One of my favorite presentations, I’ve presented it already at OOW14 and UKOUG Tech14, but it’s still a very new topic for most people, even the most experienced DBAs. You’ll learn how Multitenant, RAC and Data Guard work together. Expect colorful architecture schemas and a live demo!  You can read more about it in this post.



Panel: Nothing to BLOG About – Think Again

My friend Michael Abbey (Pythian) invited me to participate in his panel about blogging. It’s my first time as panelist, so I’m very excited!



IOUG RAC SIG Meeting

Missing this great networking event is not an option! I’m organizing this session as RAC SIG board member (Thanks to the IOUG for this opportunity!). We’ll focus on Real Application Clusters role in the private cloud and infrastructure optimization. We’ll have many special guests, including Oracle RAC PM Markus Michalewicz, Oracle QoS PM Mark Scardina and Oracle ASM PM James Williams.

Can you ever miss it???



A good Trivadis representative!!

trivadis.com

This year I’m not going to Las Vegas alone. My Trivadis colleague Markus Flechtner , one of the most expert RAC technologists I have the chance to know, will also come and present a session about RAC diagnostics:

615: RAC Clinics- Starring Dr. ORACHK, Dr CHM and Dr. TFA

Mon. April 13| 9:15 AM – 10:15 AM | Room Palm D

If you speak German you can follow his nice blog: http://oracle.markusflechtner.de/

Looking forward to meet you there

Ludovico
