Data Guard 26ai – #7: Rolling Upgrade with Application Continuity

This post is part of a blog series.

One of my favorite Oracle Active Data Guard features is Rolling Upgrades. Introduced in 12c, Rolling Upgrades use the DBMS_ROLLING package to keep downtime during upgrades to a minimum: your apps stay connected almost the entire time.

Here’s how it works in real life: when it’s time for a major upgrade or maintenance, you convert your physical standby database to a transient logical standby (so it uses SQL apply instead of redo apply).

Data Guard configuration using physical standby database

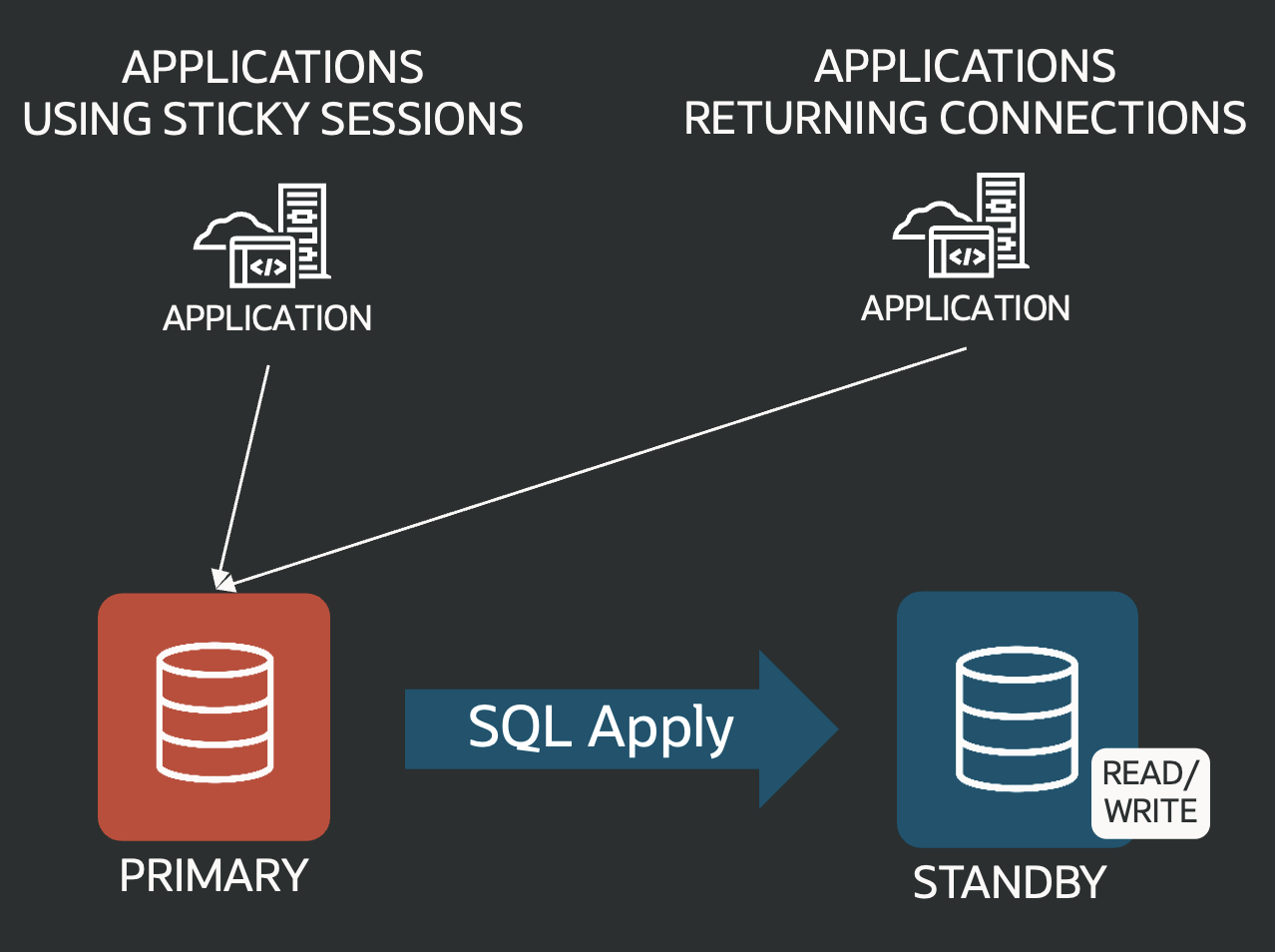

Data Guard configuration using logical standby (SQL apply)

With that done, your standby is open for read/write. You stop replication, upgrade the standby (say, to 26ai), and then bring it back into sync with the primary.

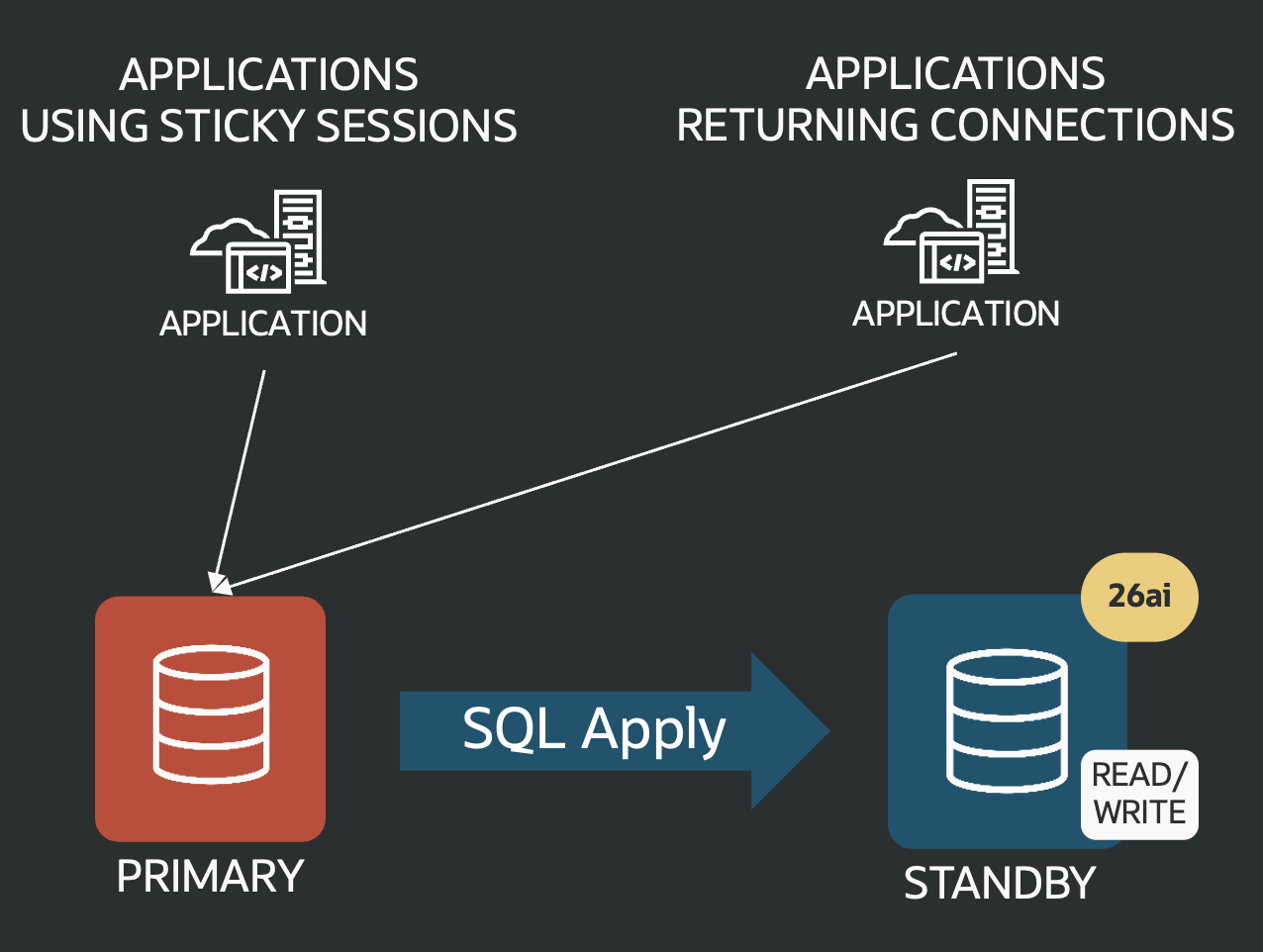

Data Guard with SQL apply aligning a standby that has already been upgraded

Once everything’s caught up, you finish with a switchover: the upgraded standby becomes the new primary. Apps stay connected most of the time; actual downtime is basically just the switchover itself. DBMS_ROLLING automates everything except the actual upgrade, which you can handle with AutoUpgrade or Fleet Patching and Provisioning.

If your applications use a proper connection pool, they’ll disconnect and transparently reconnect during the switchover, so your users won’t even notice. But sticky sessions (apps that hold onto DB connections) used to be a problem: connections would break, and apps had to catch exceptions and reconnect, or had to be restarted manually.

Now, with 26ai, everything’s easier. DBMS_ROLLING’s switchover supports Application Continuity and Transparent Application Continuity!

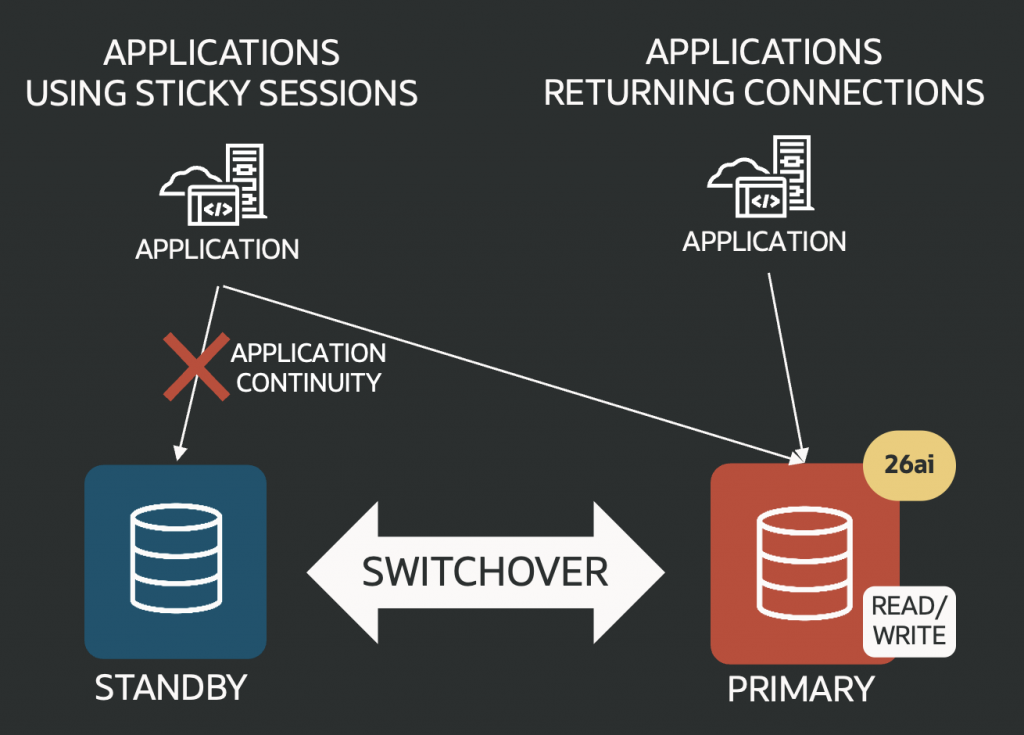

Applications reconnect with application continuity to the new upgraded database.

Even sticky-session apps automatically reconnect and pick up where they left off, so transactions flow smoothly. That means that application can start a transaction in 19c and finish it in 26ai! 🤯 This is possible because Oracle has backported this feature to 19c (19.30 release update), letting you upgrade from 19c to 26ai with Application Continuity support.

The following two tabs change content below.

Ludovico

Principal Product Manager at Oracle
Ludovico is a member of the Oracle Database High Availability (HA), Scalability & Maximum Availability Architecture (MAA) Product Management team in Oracle. He focuses on Oracle Data Guard, Flashback technologies, and Cloud MAA.
